Section Steel H Shape Metal with Good Price

Product information

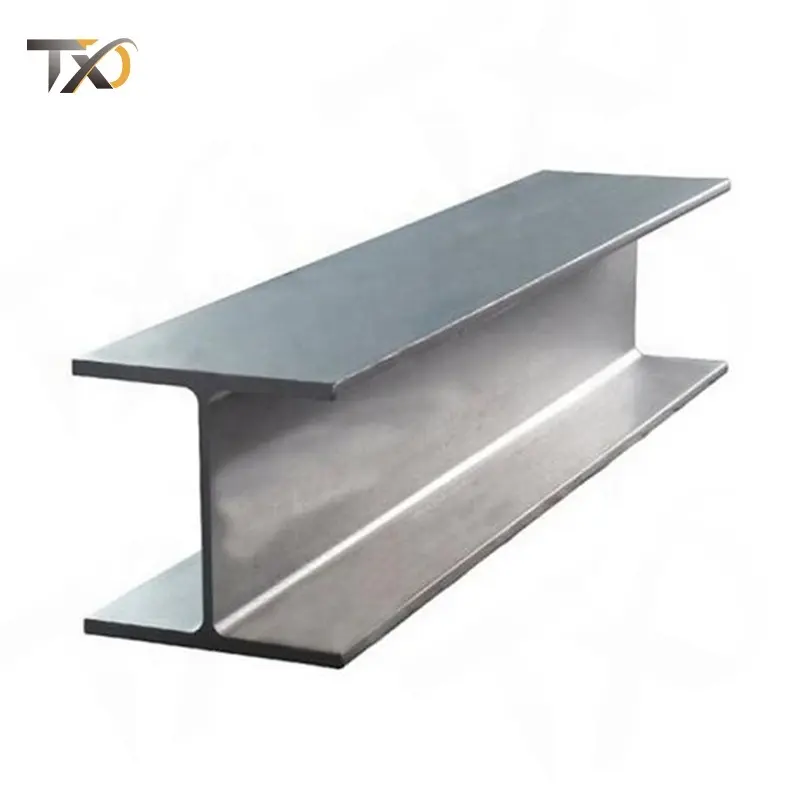

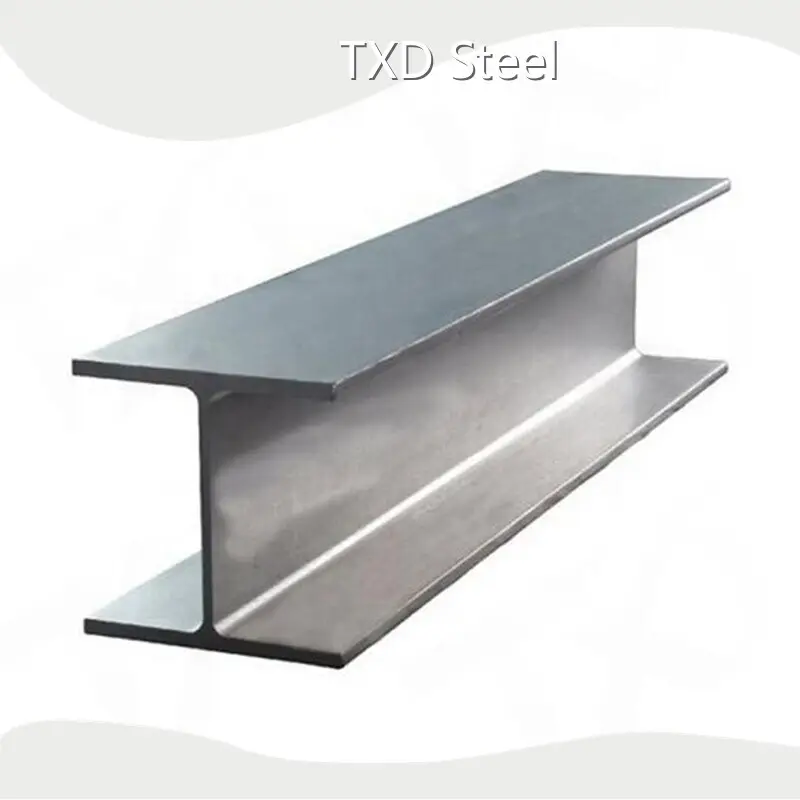

H-beam steel is an economical and efficient profile with more optimized section area distribution and more reasonable strength-to-weight ratio, so it is named because its section is the same as the English letter "H". Because all parts of H beam are arranged at right angles, H beam has been widely used for its advantages of strong bending resistance, simple construction,cost saving and light structural weight in all directions.

Product Name	high quality structural carbon steel h beam profile h iron beam hot rolled mild steel q235b h beam
Size	1.Web Width (H): 100-900mm 2.Flange Width (B): 100-300mm 3. Web Thickness (t1): 5-30mm 4. Flange Thickness (t2): 5-30mm
Length	1m - 12m , or according to your requests.
Standard	GB ASTM, JIS, SUS, DIN, EN etc
Material	Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60
Technique	Cold Rolled,Hot Rolled or Welded
Application	Industry,Construction,Decoration,Shipbuilding,Bridging,etc.
Price Item	FOB,CIF,DDU,FCA,EXW ,.etc
Packing	Export standard packing or according to customers' requirement
Supply Ability	Within 7-10 workdays,25-30days when the quantity beyond 1000tons

H beam detail size
H Type Steel Size and Theoretical Weight
Size (mm)	Theoretical Weight (kg/m)	Size (mm)	Theoretical Weight (kg/m)	Size (mm)	Theoretical Weight (kg/m)
100*50*5*7	9.3	250*125*6*9	29	446*199*8*12	65.1
100*100*6*8	16.9	250*250*9*14	71.8	450*200*9*14	74.9
125*60*6*8	13.1	294*200*8*12	55.8	482*300*11*15	110.8
125*125*6.5*9	23.6	298*149*5.5*8	32	488*300*11*18	124.9
148*100*6*9	31.1	340*250*9*14	36.7	496*199*9*14	77.9
150*75*5*7	14	300*150*6.5*9	93	500*200*10*16	88.1
150*150*7*10	20.7	300*300*10*15	78.1	582*300*12*17	132.8
175*90*5*8	18	346*174*6*9	41.2	588*300*12*20	147
175*175*7.5*11	40.4	350*175*7*11	49.4	596*199*10*15	92.4
194*150*6*9	29.9	350*350*12*19	134.9	600*200*11*17	103.4
198*99*4.5*7	17.8	390*300*10*16	104.6	700*300*13*24	181.8
200*100*5.5*8	20.9	396*199*7*11	56.1	800*300*14*26	206.8
200*200*8*12	49.9	400*200*8*13	65.4	900*300*16*28	240.1
244*175*7*11	43.6	400*400*13*21	171.7
248*124*5*8	25.1	440*300*11*18	120.8
Length=6-12meters

Main application of H-beam steel:
Various civil and industrial building structures; various long-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; large bridges that require large bearing capacity, good section stability, and large spans

Production Process

We have multiple high-quality production lines and can supply large quantities of orders. We can provide different specifications according to your requirements and we can integrate all resources, provide excellent service, help you save time in purchasing,and provide each customer with the best quality products and services.

Packing and shipping

1. Package with 20 ft or 40 ft container, fixing spiral steel pipe in the container with steel cable;
2. Package in bulk;
3. Pieces per container depending on the diameter of spiral steel pipes.
4.According to customers' requirement.

Company Profile

TXD Steel Group Co., Ltd. in July2023 ，the sixth branch of Jinan Jinhongtong Steel Pipe Co. , Ltd The company is well-funded.Our annual sales nearly three billions,about 600,000 tons steel.We entered into a strategic partnership with Bao steel,Laiwu steel,Rizhao steel,Handan steel,Anyang steel,Maanshan steel and other domestic large steel companies. We also have ourselves steel process factory with 100000 Square meter for steel laser cutting,surface treatment and other further processing,and our stock always more than 20,000 tons.Guangdong Steel Bull mainly engaged in:PPGI,galvanized steel，steel plate,round bar,steel pipe,stainless steel product,angle bar,steel pile ,H beam,I beam,angle,Channel flat steel etc.

Our good quality and reliable service will be your best trusted partner.Sincerely wish to building long and regular business with you forever! Since its establishment,the company has adhered to the concept of people-oriented development,respect each employee’s personal development value,and cast a solid core of the enterprise with action.

We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you!

FAQ

Q1: How many countries you already exported?

A1: Exported to more than 50 countries, mainly from Bangladesh, Indonesia,Philippines, Serbia, Brazil, Iraq, Israel, United Arab Emirates, etc.
Q2: How long will it take to execute my order?
A2: Delivery time of stock products: 3-7 days after payment. Custom product delivery time: 20-45 days after payment.
Q3：Can I have a sample for testing?
A3: The cost of the samples is according to the value. The cost of the freight is necessary.
Q4：Do you have inspection for the products before packing?
A4: All products have to go through three checks in the whole manufacturing process,it includes production and Random Testing in warehouse and Before Shipping.and accept the third party inspection
Q5:Can I get your best price?
A5: Price is different based on steel grade, size and quantity.Our goal is to provide you the best price with great quality
assured in a long run.Please leave your contact information for the includes production.we will get back to you with the best solutions as soon as we can.Please give those info, for price checking.If the required is sheet metal fabrication, please send drawing.
Q6:How to order?
A6: Buyer sends the inquiry --> Buyer gets the quotation-->Order confirmation-->Buyer send the deposit-->Seller prepares
Q7：what kind of payment does your company support?
A7: T/T, L/C at sight, are all accepted.

Company Advantages

· TXD Steel h shape metal is incorporated with many technologies and the latest industry innovations.

· h shape metal is more suitable for a variety of occasions.

· This product greatly meets customers' particular requirements with its outstanding characteristics.

Company Features

· TXD Steel, thanks to the h shape metal, is known to more and more clients and end users.

· There are many different industries that our products play a critical role in. With the increasing spread of technology, more different uses will constantly evolve.

· Unlike some enterprises pursuing short-term gains, TXD Steel has formulated a long-term strategy with a commitment to offering the best service.

Application of the Product

Our h shape metal is widely used in various scenarios.

With professional engineers and technicians in our company, TXD Steel is able to provide one-stop and comprehensive solutions for customers.
